三星UR55(U28R55)拆解教程 disassembly guide

2024-10-14 02:26:34

1、首先,将显示屏糁袄噗囔朝下放于平面上。若地面不够平或有沙子,桌子太小就放在床上Firstly, place the monitor on a flat surface, screen towards the bottom. If your desk is too small, floor is uneven/having sands, just please the monitor on your bed

三星UR55(U28R55)拆解教程 disassembly guide

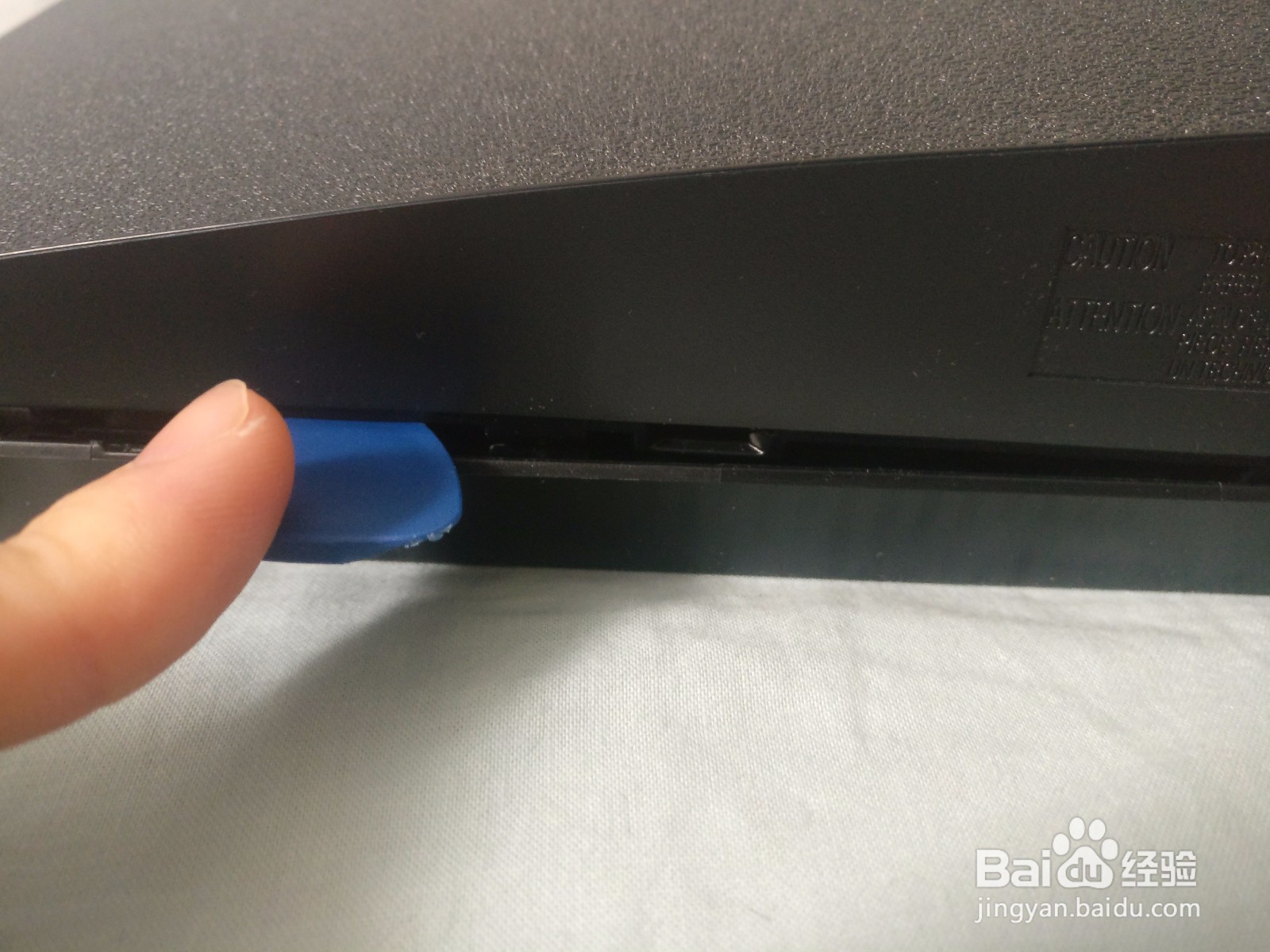

3、将撬片(不要用螺丝刀或硬的东西)斜插入每个槽,注意图2中标注的深度Carefully plunge the prying piece into each slot, make sure the depth is about as the 2nd image

三星UR55(U28R55)拆解教程 disassembly guide

4、然后上撬,底部的所有卡扣就会打开,打开后的缝如图:and then lift up, and all the hooks in bottom would open, leaving a caveat as image shows

三星UR55(U28R55)拆解教程 disassembly guide

5、将两侧分别稍用力掀开几个卡扣,然后抬起整个背面壳,拆解就完成了。剩下的部分用螺加泥蛲责丝刀就可以拆下来Apply some lift forces on each side, and then lift the complete back shell, the disassembly is done. The rest part can be removed with screw driver

三星UR55(U28R55)拆解教程 disassembly guide
